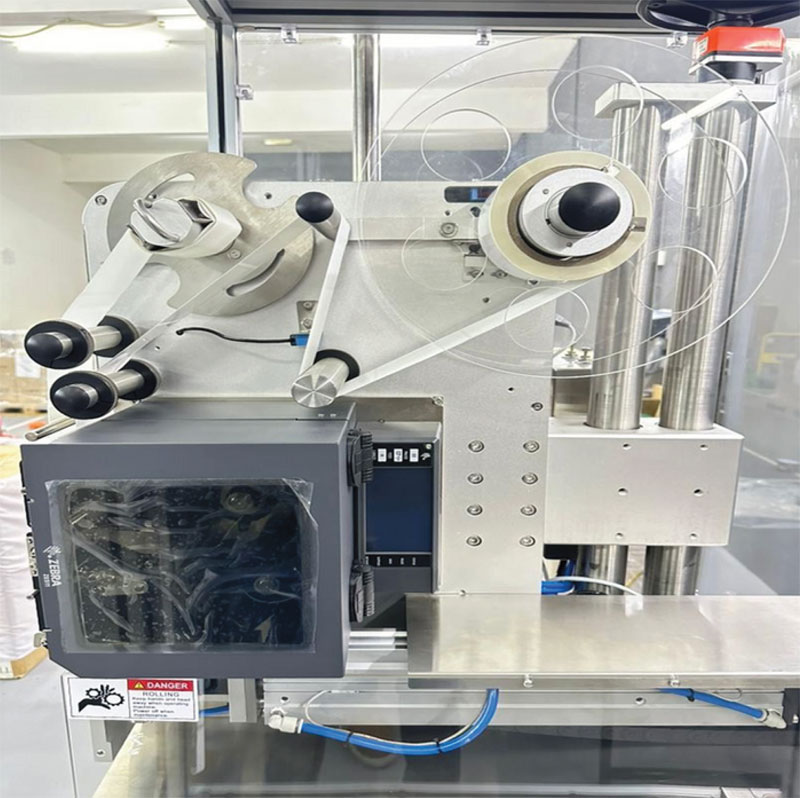

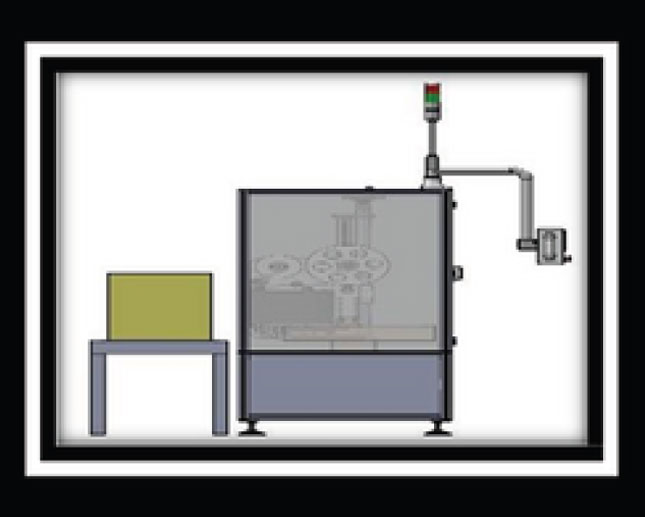

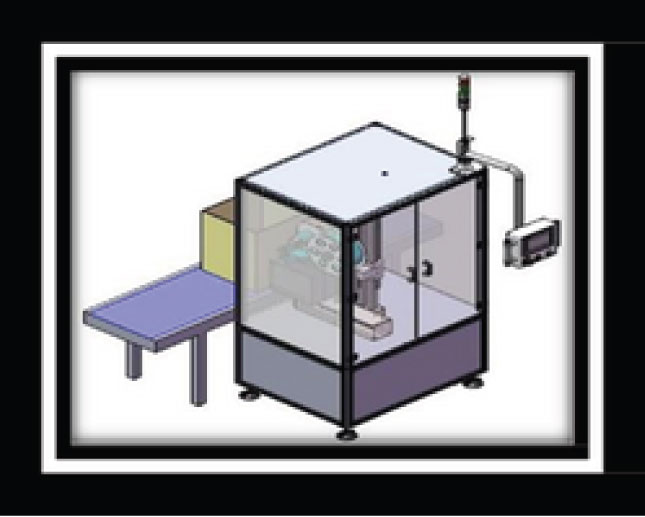

TAMP - On Label Applicator Print & Labelling Machine DY LAC30
The benefits of the labelapplicator tamp-on:
- Plug & play integration with DY Labellers
- DY LAC30 Print & Apply
- High output for side apply
- Easy change of label sizes
- Industrial designfor reliable operation
- Applies to moving and stopped products
- Low maintenance, less wear parts
Technical Specifications
| MODEL : DY LAC30 | |
| Specification | Value |
|---|---|
| Printing Content | Text, Serial number, Date, Image, Barcode and other variable information |
| Labelling Speed | 10 – 60 pcs/min |
| Labelling Precision | ± 1 - 2 mm |
| Labelling Method | Tamp-on, corner wrap, air blow and swing arm |
| Electricity | 220VAC ± 5% 50Hz |
| Air Supply | 0.4 – 0.6 Mpa 300 L/min |
| Label Size | W x H x D 50 mm x 210 mm |
| Environmental Data | Operating Temperature : 5° - 40°C |
| Noise Level | 75 dB |
| Humidity | 30 – 80% (non-condensing) |
| Label Weight | Approx 5 kg |
| Protection Glass | IP21 |
