Coding and Marking

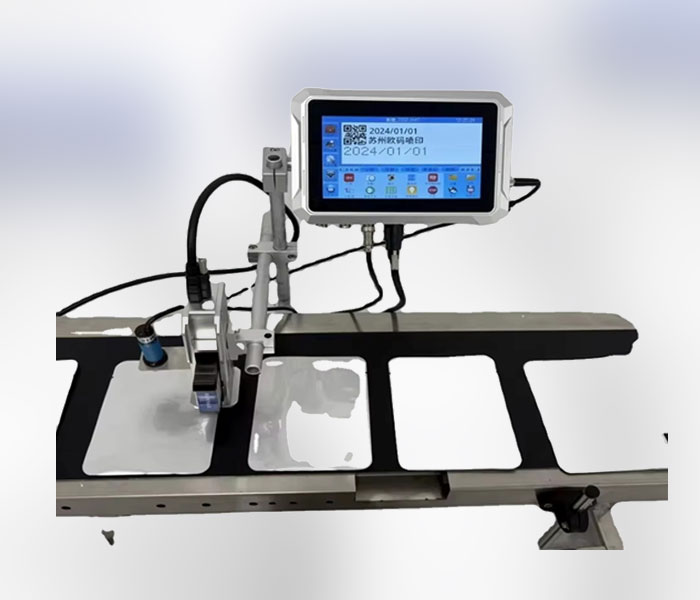

Thermal Inkjet Printer DY600
- HP TIJ 2.5 Technology: HP original imported printing mode, using HP original driver board, higher printing quality
- Newly upgraded UI interface: Smoother operating experience
- High-definition printing accuracy: 150dpi-600dpi, supports 4 printhead expansions to meet the needs of content with more sizes
- Support variable data printing: Receive and print real-time data via Ethernet, connect to PLC or other devices to transmit data
- 7-inch high-definition color touch screen: Lightweight 7-inch touch screen can be installed in limited space
Full metal shell, anti-drop and anti-interference, industrial design, more solid
Industrial grade protective aluminum alloy main unit Anti-drop and anti-interference
Technical Specifications
| Specification | Value |
|---|---|
| Unit dimensions | 215mm140mm35mm |
| Screen size | 7-inch high-definition color touch screen |
| Unit weight | 1.3kg |
| Casing material | Aluminum alloy shell |
| Printing accuracy | DPI optional: 150/200/300/400/600 |
| Ink cartridge | 12.7mm/25.4mm |
| Ink cartridge capacity | 42ml (single) |
| Printing speed | 0-110m/min |
| Power parameters | 60W 12V power adapter |
| Interface | USB, sensor, synchronizer, Ethernet, alarm light |
| Printing height | TIJ-V600: 1-12.7mm; TIJ-V600-2: 2-25.4mm |
| Printing system | TIJ 2.5 |
| Maximum printing speed | 20m/min 600x300DPI; 40m/min 300x300DPI |
| Optional accessories | Alarm light, synchronizer |
| Functions | Text, time, picture, team number, database, counter, variable barcode, real-time data |
| Font size | TrueType stepless scaling |
| Standard accessories | Touch screen, HDMI cable, power supply, nozzle, sensor, bracket, touch pen |
| Installation standard | Side spray, bottom spray installation bracket, free combination installation |
| Temperature/humidity | 5°C~35°C/10%-90% |
| Counter | Counters can be flexibly set for serial number, box number, and pallet number |
| Data backup and restore | Device data can be backed up to a USB flash drive, and USB flash drive data can be restored to the device to avoid repeated editing or loss of materials |
